Junction Box

What is a Junction Box?

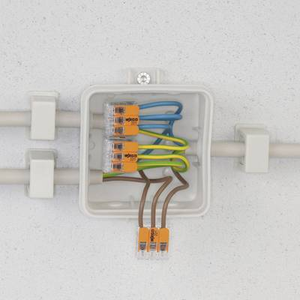

A junction box is a physical enclosure that houses and protects electrical wire connections. It provides a safe, accessible space where wires can be spliced, joined, or branched without being exposed. In real electrical installations, junction boxes are required by electrical code for any wire splices or connections. In Elecplanner, the junction box component serves as a visual container that helps you organize related connections, making your electrical plan cleaner and more professional.

Why Use Junction Boxes?

Electrical Code Requirements

• Required by code: All wire splices must be in accessible junction boxes
• Safety: Protects connections from physical damage
• Fire prevention: Contains any sparks or heat from faulty connections
• Accessibility: Provides access for inspection, maintenance, and modifications

Planning Benefits

• Visual organization: Groups related connections together
• Cleaner diagrams: Reduces wire clutter on your canvas
• Professional appearance: Matches real-world installation practices
• Logical grouping: Shows where wire connections physically occur
• Future modifications: Easier to plan additions or changes

Adding a Junction Box to Your Canvas

Step 1: Open the Component Library

1. Click the Components button in the sidebar
2. Open the Enclosures or Connections category
3. Find the Junction Box component

Step 2: Place on Canvas

1. Click and hold the Junction Box icon
2. Drag it onto your canvas
3. Release to place it at the desired location
4. The box will appear as a resizable rectangle (default 240x240px)

💡 Tip: Place junction boxes where wires naturally converge in your plan - between rooms, near groups of devices, or at distribution points.

Resizing and Positioning Junction Boxes

Resizing a Junction Box

1. Click on the junction box to select it
2. Drag the corner or edge handles to resize
3. Make it larger to accommodate more connections
4. Make it smaller for simple splice points
5. Minimum size: 100px x 100px

Moving a Junction Box

1. Click and hold on the junction box
2. Drag it to a new location on your canvas
3. Release to place it
4. Note: Components placed “inside” the box (visually) won’t automatically move with it

Sizing Guidelines

Small Junction Box (100-150px):

• 2-4 wire connections
• Simple splices
• Single-room applications

Medium Junction Box (150-250px):

• 4-8 wire connections
• Multiple device connections
• Most common size

Large Junction Box (250-400px):

• 8+ wire connections
• Central distribution points
• Multi-room distribution
• Complex wiring scenarios

💡 Best Practice: Size your junction box to comfortably fit all the Wago connectors or wire connections you’ll place inside it visually.

Understanding Junction Box Properties

Opening the Properties Panel

1. Click on the junction box to select it
2. The properties panel appears on the right side of the screen
3. Or double-click the junction box to open properties

Selecting the Brand

The Brand property lets you choose the manufacturer:

Available Options:

• Legrand (default) - French manufacturer, common in Europe
• Schneider - Another major European brand

This setting:

• Changes the visual appearance
• Helps match real-world equipment
• Maintains consistency with other components

Setting the Color

The color property helps you organize and identify junction boxes:

Common Color Coding System:

• Blue (default) - General purpose connections
• Red - Emergency/security circuits
• Green - Ground connections only
• Yellow - Communication/data circuits
• Gray - Utility/mechanical connections
• Orange - High-voltage or special circuits

💡 Best Practice: Use consistent colors throughout your plan. For example, all blue boxes for standard connections, all red boxes for critical circuits.

Using Junction Boxes in Your Plan

Basic Usage

A junction box in Elecplanner is a visual grouping tool:

1. Place the junction box where connections will occur
2. Route wires into and out of the box
3. Place Wago connectors or connection points inside the box (visually)
4. Label the box to identify its purpose

Important: The junction box itself doesn’t create electrical connections - it’s a visual container. Use Wago connectors or wire connections inside the box for actual electrical joining.

Visual Organization

Good practice:

Junction Box labeled "Kitchen Distribution"
├─ Wago connector for hot wires (inside box)
├─ Wago connector for neutral wires (inside box)
├─ Wago connector for ground wires (inside box)
└─ Wires enter and exit the box boundaries

This clearly shows that all connections are happening within the junction box!

Common Junction Box Patterns

Pattern 1: Power Distribution Hub

Circuit Breaker → Junction Box
                ├─ Outlet 1
                ├─ Outlet 2
                ├─ Outlet 3
                └─ Outlet 4

Inside the junction box:
- Wago connector distributes hot wire to 4 outlets
- Wago connector distributes neutral to 4 outlets
- Wago connector distributes ground to 4 outlets

Result: Clean “home run” wiring from one source to multiple destinations

Pattern 2: Neutral Collection Point

Device 1 Neutral → Junction Box
Device 2 Neutral → Junction Box
Device 3 Neutral → Junction Box
Junction Box → Panel Neutral Bus

Inside the junction box:
- Wago connector joins all neutrals
- Single wire runs to panel

Result: Multiple neutrals collected and routed as one to the panel

Pattern 3: Through-Junction Routing

Room 1 Circuits ← Junction Box → Room 2 Circuits
                       ↑
                  From Panel

Inside the junction box:
- Wago connectors split power to multiple directions
- Acts as central distribution point

Result: Junction box routes power from panel to multiple rooms

Pattern 4: Switch Loop Junction

Circuit Breaker → Junction Box → Switch
                       ↓
                    Light(s)

Inside the junction box:
- Power enters from breaker
- Switched hot goes to lights
- Neutrals joined with Wago
- Grounds joined with Wago

Result: Junction box houses switch leg connections

Pattern 5: Multi-Circuit Meeting Point

Circuit A → Junction Box ← Circuit B
                 ↓
            Circuit C

Inside the junction box:
- Separate circuits organized
- Neutrals may be shared or separate
- Clear organization of multiple circuits

Result: Logical place where multiple circuits converge

Practical Applications

Room-by-Room Junction Box Placement

Kitchen:

• Central distribution box: Under sink area
  • Counter outlet circuits
  • Appliance connections
  • Lighting circuits
• Size: Large (300x300px)
• Color: Blue for general, Red for appliance circuits

Bathroom:

• Wet-area junction: Above vanity or accessible ceiling
  • GFCI-protected outlets
  • Lighting
  • Exhaust fan
• Size: Medium (200x200px)
• Color: Blue, ensure GFCI protection

Bedroom:

• Bedroom distribution: Closet or hallway access
  • Overhead lighting
  • Outlet circuits
  • Switched outlets
• Size: Medium (200x200px)
• Color: Blue

Garage/Workshop:

• Workshop hub: Central location
  • Power tool outlets
  • Lighting circuits
  • Garage door opener
• Size: Large (300x300px)
• Color: Gray for utility

Basement:

• Central distribution: Near panel
  • Multiple circuits branch out
  • Future expansion capacity
• Size: Large (300x300px)
• Color: Blue or Gray

Special Purpose Junction Boxes

Outdoor Lighting:

• Weather-resistant junction boxes required
• Size: Small to Medium (150x200px)
• Color: Yellow for outdoor
• Must be accessible

Security/Low Voltage:

• Separate from power circuits
• Size: Small (100x150px)
• Color: Yellow for communication

HVAC Connections:

• Dedicated junction for heating/cooling
• Size: Medium (200x200px)
• Color: Gray for mechanical

Best Practices

Placement Strategy

1. Accessible locations:

   • Ceiling access panels
   • Basement/crawlspace access
   • Behind removable panels
   • Not buried in walls or sealed spaces

2. Logical grouping:

   • Place where wires naturally meet
   • Group related circuits together
   • Near devices they connect

3. Adequate spacing:

   • Don’t overcrowd junctions
   • Leave room for wire routing
   • Consider real installation space

4. Future planning:

   • Size boxes larger than immediately needed
   • Plan for potential additions
   • Consider renovation possibilities

Labeling and Documentation

1. Clear labels:

   • “Kitchen Counter Outlets”
   • “Master Bedroom Junction”
   • “Living Room Lighting Hub”

2. Consistent naming:

   • Use room + function format
   • Be specific about contents
   • Match to circuit directory

3. Document contents:

   • Note which circuits connect
   • List connected devices
   • Record wire gauges (for real installations)

Organization Inside Junction Boxes

Real-world best practices (apply to planning):

1. Separate by function:

   • All hot connections together
   • All neutral connections together
   • All ground connections together

2. Color coordination:

   • Red wires for hot
   • Blue wires for neutral
   • Green wires for ground

3. Use Wago connectors:

   • Place Wagos visually inside the box
   • One Wago per wire type
   • Label each Wago

4. Neat wiring:

   • Route wires logically into/out of box
   • Minimize wire crossings
   • Keep diagram clean

Size Selection Guide

Small (100-150px):

• Single splice or simple connection
• 2-4 wires total
• Small room or fixture junction

Medium (150-250px):

• Standard junction box
• 4-8 wire connections
• Most residential applications
• Default choice for most uses

Large (250-400px):

• Central distribution point
• 8-16+ wire connections
• Multi-circuit meeting points
• Complex wiring scenarios

Extra Large (400px+):

• Main distribution panels (use Electrical Panel component instead)
• Rarely needed for simple junction boxes

Real-World Junction Box Information

Types of Junction Boxes

By Material:

• Plastic (PVC): Non-metallic, indoor use, economical
• Metal: Steel or aluminum, can serve as ground path, more durable
• Weather-resistant: Outdoor use, gasketed covers

By Mounting:

• Old work: Clamp-mounted, renovation projects
• New work: Nail-on, new construction
• Ceiling: Round or octagonal, light fixtures
• Wall: Square or rectangular, switches/outlets

By Size (Real-world):

• 4” square, 1½” deep: Most common
• 4” square, 2⅛” deep: More capacity
• 4” octagonal: Ceiling lights
• Various rectangular: Specific applications

Code Requirements

National Electrical Code (NEC):

• All splices must be in boxes
• Boxes must be accessible (not buried)
• Proper box fill calculations required
• Covers required on all boxes
• Boxes must be securely mounted

Box Fill Calculation: Real installations must calculate:

• Volume per conductor
• Volume for devices
• Volume for clamps/fittings
• Cannot exceed box capacity

Accessibility:

• Must be accessible without removing permanent structures
• Cannot be behind drywall
• Cannot be under floors or behind sealed ceilings
• Must have removable covers

Integration with Other Components

Junction Box + Wago Connectors

Perfect combination:

1. Place junction box on canvas
2. Position Wago connectors inside box (visually)
3. Wire into/out of box
4. Label both box and Wagos clearly

Example:

Junction Box "Kitchen Hub"
├─ Wago "Kitchen Hot" (T0=breaker, T1-T4=outlets)
├─ Wago "Kitchen Neutral" (T0=panel, T1-T4=outlets)
└─ Wago "Kitchen Ground" (T0=panel, T1-T4=outlets)

Junction Box + Circuit Breaker

Distribution pattern:

Circuit Breaker → Junction Box → Multiple Devices

The junction box acts as the first split point after the breaker,
organizing all downstream connections.

Junction Box + Lights/Outlets

Common residential pattern:

Junction Box (ceiling)
├─ Power in from circuit breaker
├─ Switched power to light fixture
├─ Switch leg to wall switch
└─ Neutral returns all joined

Multiple Junction Boxes

Hierarchical distribution:

Main Junction (near panel) → Secondary Junctions (in rooms) → Devices

Creates organized, hierarchical wiring structure

Troubleshooting

Junction Box Too Small

Problem: Too many wires/connections to fit comfortably

Solution:

• Increase box size using resize handles
• Or use multiple junction boxes
• Or use larger box in real installation

Junction Box in Wrong Location

Problem: Box placed where it would be inaccessible in real installation

Solution:

• Move to accessible location (ceiling, basement, behind access panel)
• Consider real-world accessibility
• Follow code requirements for access

Unclear Wire Routing

Problem: Wires enter/exit junction box in confusing ways

Solution:

• Route wires more clearly
• Use straight lines where possible
• Minimize wire crossings
• Consider wire path in real installation

Too Many Junction Boxes

Problem: Electrical plan cluttered with boxes

Solution:

• Consolidate related connections into fewer boxes
• Use larger boxes instead of many small ones
• Remove unnecessary junction boxes
• Only use where connections actually occur

Design Patterns

Home Run Wiring (Star Topology)

Best for modern installations:

Electrical Panel → Central Junction Box
                 ├→ Room 1 Junction
                 ├→ Room 2 Junction
                 ├→ Room 3 Junction
                 └→ Room 4 Junction

Each room junction distributes to devices in that room

Advantages:

• Easy to troubleshoot
• Easy to modify
• Each room can be isolated
• Professional appearance

Daisy-Chain with Junctions

Traditional residential:

Panel → Junction 1 → Device → Device
              └→ Junction 2 → Device → Device
                        └→ Junction 3 → Device

Connections made at strategic points along the chain

Advantages:

• Less wire required
• Common in older homes
• Matches traditional wiring

Hybrid Approach

Combines both methods:

Panel → Main Junction (star distribution) → Secondary Junctions (daisy-chain within rooms)

Advantages:

• Balance of efficiency and organization
• Logical grouping
• Flexible for different needs

Safety Considerations

Real-World Installation

⚠️ Important: This documentation is for planning in Elecplanner. For actual electrical installations:

• Always hire a licensed electrician
• Use appropriately sized junction boxes
• Calculate box fill properly
• Ensure boxes are accessible
• Use proper wire connectors (Wagos, wire nuts, etc.)
• Follow all local electrical codes

Junction Box Safety

• Always accessible: Never bury or permanently seal
• Proper mounting: Securely attached to structure
• Correct size: Must have adequate capacity for wires
• Covers required: All junction boxes must have covers
• Grounding: Metal boxes must be grounded

Common Mistakes to Avoid

• Undersizing: Box too small for connections
• Hiding: Placing boxes where they can’t be accessed
• Overfilling: Too many wires in too small a box
• Missing covers: All boxes must have covers
• Poor mounting: Boxes must be secure

Related Topics

• Wago Connector - Wire connections inside junction boxes
• Circuit Breaker - Power source for junction box circuits
• Outlet - Common devices connected through junction boxes
• Light - Light fixtures often require junction boxes
• Wiring Basics - General wiring techniques

---

💡 Quick Tip: Think of junction boxes as “organizational containers” in your electrical plan. Any place where wires split, join, or change direction in a real installation needs a junction box. Place them strategically in your Elecplanner design to create a clean, professional, code-compliant electrical plan!
